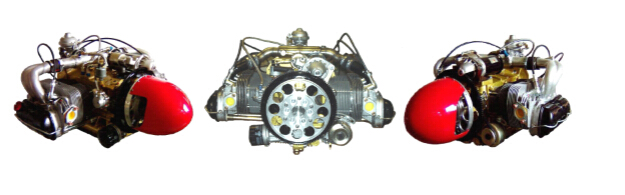

S2100UL/2200UL發動機
[1].jpg)
4 cylinder 4 stroke air cooled engine with opposed cylinders,hydraulic valve tapped,automatic carburetor,mechanical fuel pump,magneto single or magneto-electronic dual ignition,wet sump pressure lubrication.
S2100UL/2200UL是一款四缸四沖程風冷發動機，帶有對抗氣缸，分接液壓閥，自動化油器，機械燃油泵，單電磁或電磁-電子雙點火，吹掃型加壓潤滑。

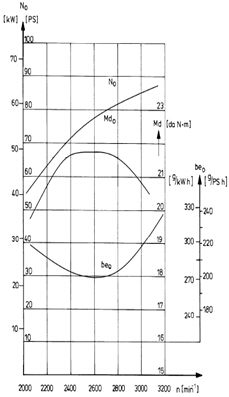

Maximum Power最大功率：63KW/85HP at 3000rpm
Continues HP連續馬力：59KW/80HP at 2700rpm
Displacement排量：2234cm³
Bore缸徑：92mm
Stroke行程：84mm
Compression ratio壓縮比：8.8:1
gnition dual雙點火：Magneto/Electronic
Spark plugs火花塞：NGK D9EA,BERU 14-6DU
Firing Order點火次序：1-3-2-4
Firing point著火點：25°BTDC
Carburetor化油器：Altitude compensation
Starter啟動器：12V-0.8KW
Generator發動機：14V-200W
Oil pressure油壓：Max. 4.5 bar,min 2 bar at 2500rpm
Oil temperature油溫：Max 120℃,min 50℃
Oil capacity油容量：3ltrs
Cylinder head temperature缸溫：Max.220℃
Propeller drive螺旋槳驅動方式：Direct,anti-clockwise
Weight approx.重量約：66KG
Type Certificate No.型號證書號：4608/UL
