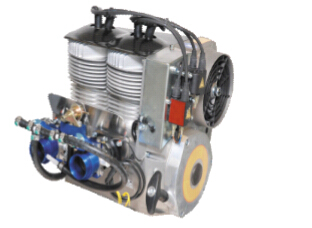

H3203E發動機
[2].jpg)
The H 32 E is an air cooled, reed valve controlled 2-cylinder-inline-2-stroke engine with electronic fuel injection and Nikasil coated cylinders.It has one of the highest power to weight ratio available on the 65 HP engine market.Ideally suited for light helicopters and all applications where weight is an issue and constant revolutions.Factory recommended TBO is rated at 500 hours at 75 % power.
3202 是一款風冷、兩缸、兩沖程直列發動機。帶有兩個滑閥式汽化器或燃油噴射系統。Nikasil 氣缸圖層. 它在65HP發動機市場具有最好的功重比。適用于超輕型飛機、氣墊船、旋翼機、試驗類輕型飛行器、以及所有對重量有嚴格要求的用途。工廠建議的TBO時間：75%功率工況下1000小時
Type:機型：in-line engine H3203E 直列發動機H3203E
Cylinder氣缸數量：2缸
Displacement排量：625 cm³
Max. performance最大性能：47,8 kW (65 HP)
Max. torque最大扭矩：72.4Nm
Cooling冷卻方式：fan-cooling
weight重量：35 kg
Starting device啟動方式：recoil starter included
Additional standard contained:選件：
dual ignition,suction pipe injection, separate lubrication,gear box G50 with or without centrifugal clutch
電啟動, 雙電子點火, 燃油噴射系統替代雙汽化器，獨立的機油潤滑，G50齒輪箱（可安裝離心式離合器），可取消風扇冷卻
